WDS305 Integrated noise sensor PM2.5PM10 dust particle sensor

  • WDS305 Integrated noise sensor PM2.5PM10 dust particle sensor
  • WDS305 Integrated noise sensor PM2.5PM10 dust particle sensor
  • WDS305 Integrated noise sensor PM2.5PM10 dust particle sensor
Model No.︰-
Brand Name︰Tsingsense
Country of Origin︰-
Unit Price︰US $ 1200 / pc
Minimum Order︰1 pc
Share on:

 Total 19 Related Items
Prev12345Next

Product Description

Product Description

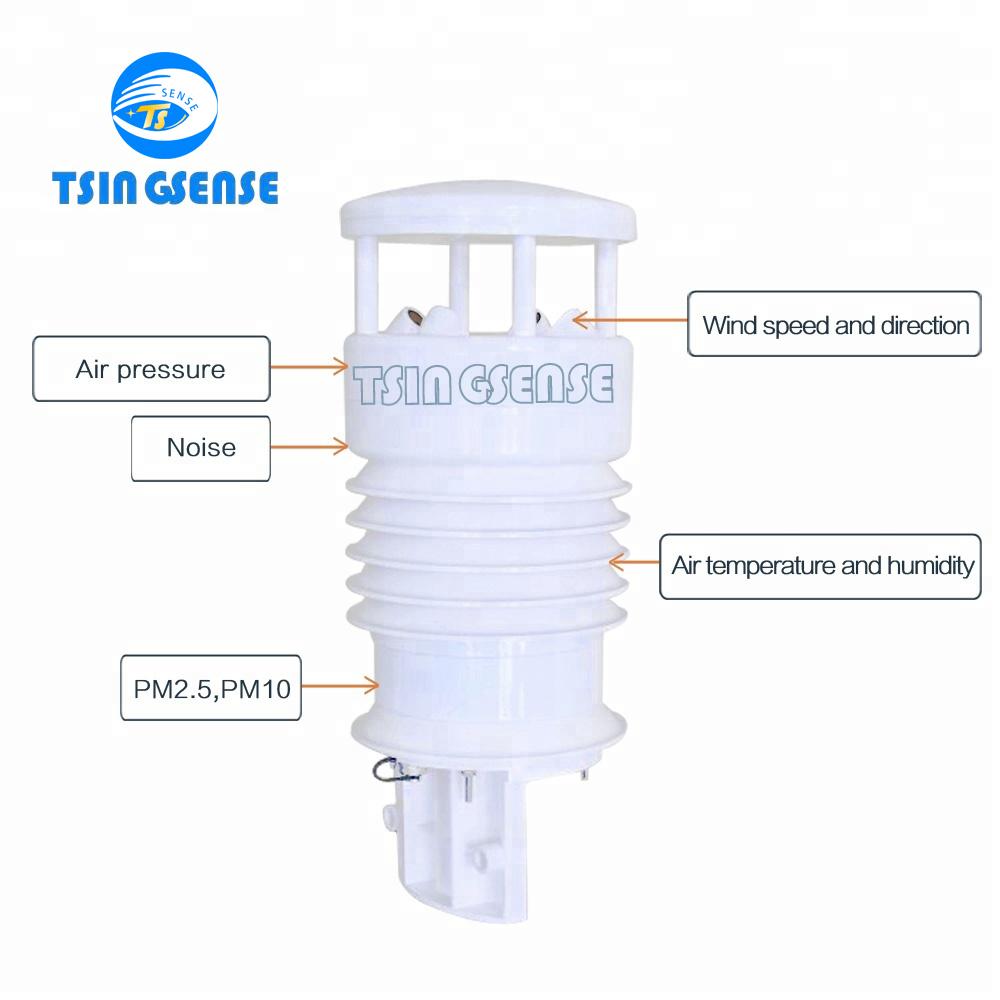

 WDS305 Integrated dust monitoring sensor is a specialized small instrument applied to monitor dust at construction sites. It can monitor five meteorological elements, wind speedwind directionair temperatureair humidityair pressure, and can also monitor three environmental factors such as PM2.5, PM10 and noise. The system is modularized and can be configured flexibly. Small volume, low cost, and it’ suitable for industrialized intensive stationing monitoring.

Features

lMaintenance free design

lStandard output protocol RS485

lSmall volume, light weight

lInstallation height is unrestricted

lLow power consumption, high precision

lIntegrated dust monitoring system

lChina's first production company



Technical Parameters

Factor

Measuring range

Resolution

Accuracy

Measuring principle

Wind speed

0~60m/s

0.1m/s

±0.3m/s or ±3%

Ultrasonic

Wind direction

0~360°

±3°

Ultrasonic

Air temperature

-40°C ~+60°C

0.1°C

±0.3°C

Thermistor

Air humidity

0~100%Rh

0.1%Rh

±2%Rh

Capacitance

Air pressure

10~1300hPa

0.1hPa

±1hPa

MEMS sensor (capacitive)

PM2.5

0~1000ug/m3

0.3ug/m3

±15% or±10μg/m3

Laser scattering

PM10

0~1000ug/m3

0.3ug/m3

±15% or±10μg/m3

Laser scattering

Noise

30~130dB(A)

A-weighted value

(Simulate human ear)

±1.5dB

Capacitive microphone

Optional configuration function (Built-in sensor): GPS-a01, WiFi-a02, Ethernet-a03,Electronic compass-b01, GPS-b02, Heating(48W)-c01, Heating(100W)-c02, Battery-d01.

Packing list

sensor                          1 set

3.5m cable                   1 line

instruction                    1 copy

certificate/warranty      1 copy

packing list                  1 copy



FAQ for WDS305 Integrated dust monitoring sensor

Q:Do you supply tripod and solar panels?

A: Yes, we can supply it, but this is optional.

Q:Can we choose other desired sensors?

A: Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.

Q:What is the way of transmission mode?

A: Communication interface adopts RS485 (RS232 can be selected)

Q: What industry can be applied to in addition to construction sites?

A:Urban roads,bridges,smart city,industrial park and mines, etc.

Q: How to install it?

A: Installed on a hollow mast with a diameter of 60-75mm.

Application

.jpg

Company information

.jpg

FAQ

Q: Are you the final manufacturer?

A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.

Q: Do you offer free samples?

A: Sorry, we don't offer free samples. You should pay the sample fee and freight.

Q: What payment ways do you accept?

A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.

Q: What is your delivery time?

A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .

Q: What is the way of delivery?

A:  Freight mode depends on time demand and customer requirements.

Q: How is your quality assurance service?

A: Our service is 2 years quality assurance, responsible for free maintenance.

Q: Could we make a visit to your company?

A: Of course, we welcome all the friends' visits.

Payment Terms︰T/T
