Product Description

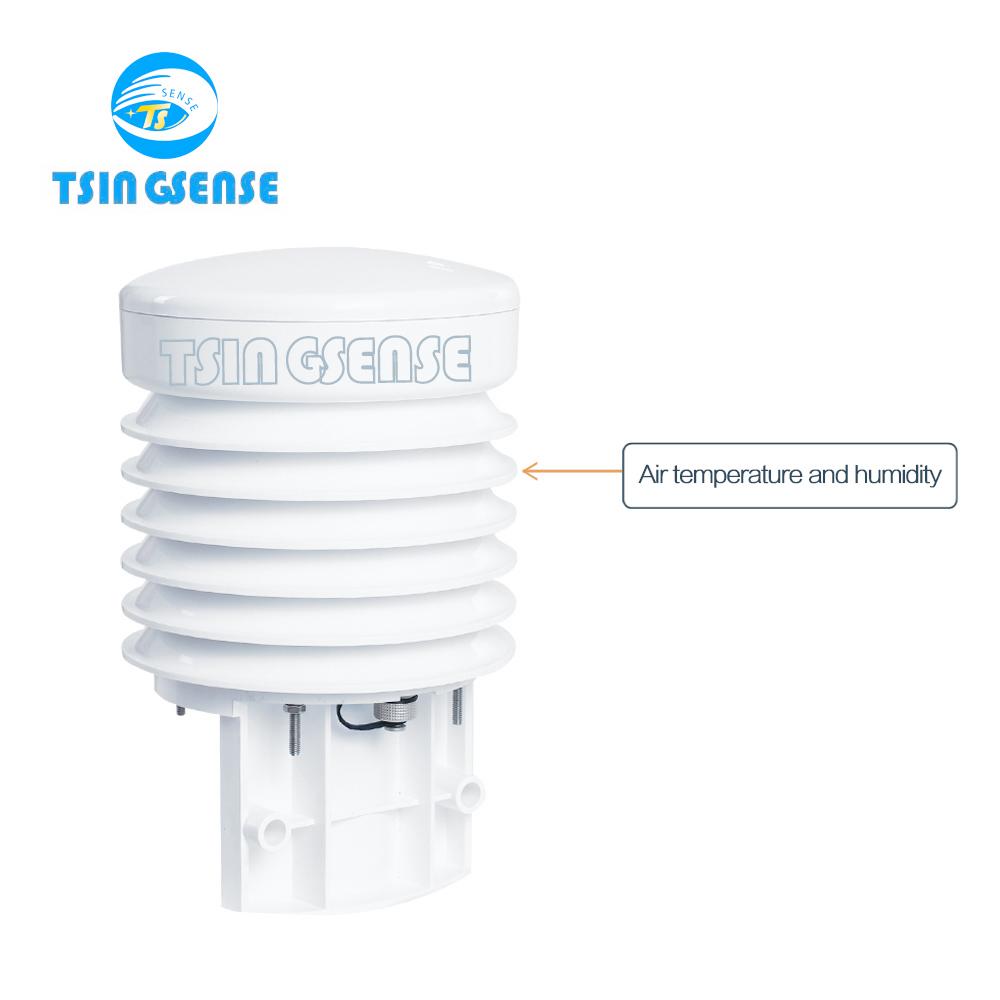

WTS201 two parameter integrated meteorological sensor is a professional sensor developed by our company to measure various meteorological elements.It can simultaneously measure two meteorological parameters: atmospheric temperature and atmospheric humidity.It has the advantages of high accuracy, fast response time, strong anti-interference ability, serial port output and so on.Users can measure directly through PC or external instruments.
Features
lIntegrated design of multiple sensors,(No need for a receiver )
lDesign of maintenance free system,(Simple installation)
lOpen system protocol
lCommunication interface adopts RS485,(RS232 can be selected)
l Low-power design
l Industrial protective shell,( Ensure long-term outdoor use)
l Optional built-in electronic compass, GPRS, GPS, etc.
Technical Parameters
|
Factor
|
Measuring range
|
Resolution
|
Accuracy
|
Measurement principle
|
|
Air temperature
|
-40℃~+85℃
|
0.1℃
|
±0.3℃
|
Thermistor
|
|
Air humidity
|
0~100%Rh
|
1%Rh
|
±2%Rh
|
Capacitance
|
|
Optional configuration function(Built-in sensor ):GPRS-a01, WiFi-a02, Ethernet-a03,
Electronic compass-b01, GPS-b02, Heating(48W)-c01, Heating(100W)-c02, Battery-d01.
|
Packing list
sensor 1 set
3.5m cable 1 line
instruction 1 copy
certificate/warranty 1 copy
packing list 1 copy
FAQ for WTS201 sensor
Q:Do you supply tripod and solar panels?
A:Yes, we can supply it, but this is optional.
Q:Can we choose the required sensor for the weather station?
A:Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A:Communication interface adopts RS485,(RS232 can be selected)
Application
