Product Description

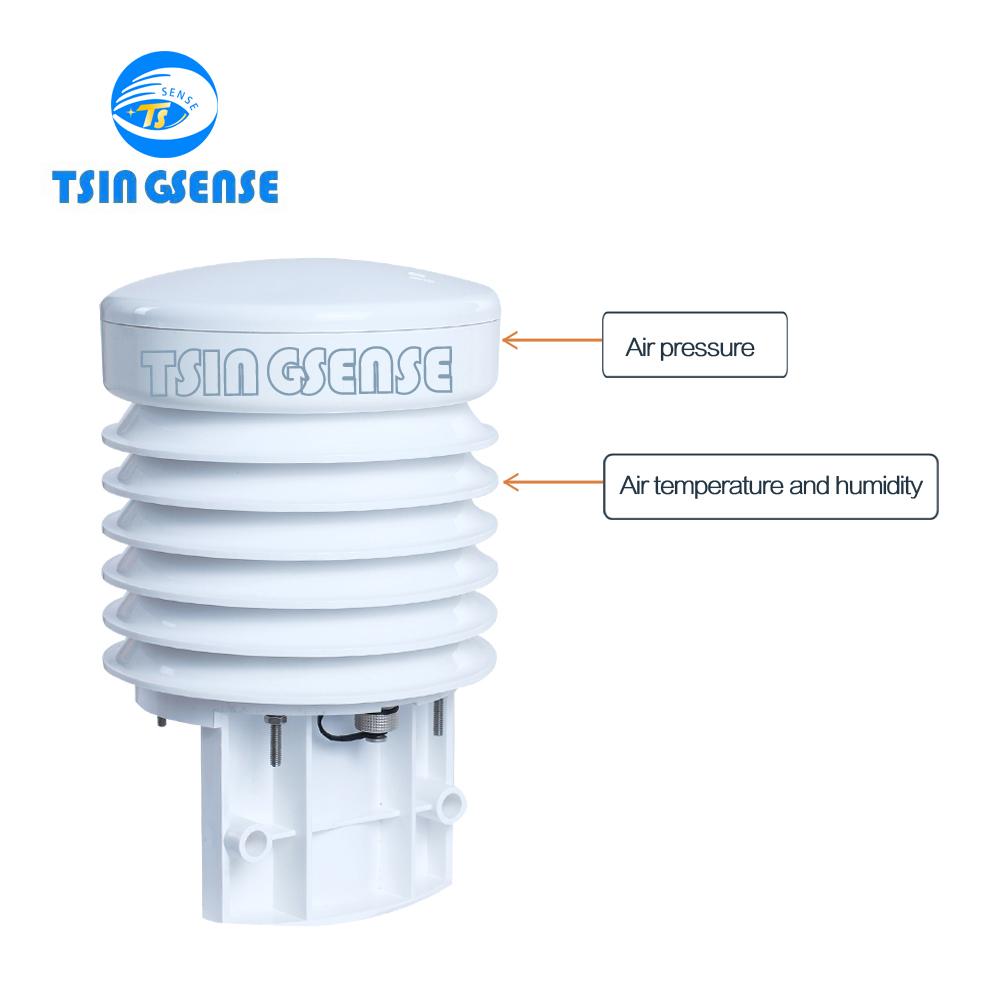

WTS300 can simultaneously measure three meteorological parameters: atmospheric temperature, atmospheric humidity and air pressure.It has the advantages of high accuracy, fast response time, strong anti-interference ability, serial port output and so on.Users can measure directly through PC or external instruments.
Features
lIntegrated design of multiple sensors,(No need for a receiver)
lDesign of maintenance free system,(Simple installation)
lOpen system protocol
lCommunication interface adopts RS485,(RS232 can be selected)
lLow-power design
lIndustrial protective shell,( Ensure long-term outdoor use)
lOptional built-in electronic compass, GPRS, GPS, etc.
Technical Parameters
|
Factor
|
Measuring range
|
Resolution
|
Accuracy
|
Measurement principle
|
|
Air temperature
|
-40℃~+85℃
|
0.1℃
|
±0.3℃
|
Thermistor
|
|
Air humidity
|
0~100%Rh
|
1%Rh
|
±2%Rh
|
Capacitance
|
|
Air pressure
|
10~1300hpa
|
0.1hpa
|
±1hpa
|
Piezoresistive
|
|
Optional configuration function(Built-in sensor ):GPRS-a01, WiFi-a02, Ethernet-a03,
Electronic compass-b01, GPS-b02, Heating(48W)-c01, Heating(100W)-c02, Battery-d01.
|
The following are types of sensors that can be added for integration.You can choose freely according to your needs.
|
Factor
|
Measuring range
|
Resolution
|
Accuracy
|
Measurement principle
|
|
Wind direction
|
0~360°
|
1°
|
±3°
|
Ultrasonic
|
|
Wind speed
|
0~60m/s
|
0.1m/s
|
±0.3m/s(3%)
|
Ultrasonic
|
|
Rainfall
|
0~5mm/min
|
0.2mm
|
±3%
|
Infrared light
|
|
Solar radiation
|
0~2000W/m2
|
1W/m2
|
≤5%
|
Silicon photodetector
|
|
UV index
|
0~15 level
|
1level
|
±1level
|
Photosensitive resistance
|
Packing list
sensor 1 set
3.5m cable 1 line
instruction 1 copy
certificate/warranty 1 copy
packing list 1 copy
FAQ for WTS300 sensor
Q:Do you supply tripod and solar panels?
A:Yes, we can supply it, but this is optional.
Q:Can we choose the required sensor for the weather station?
A:Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A:Communication interface adopts RS485,(RS232 can be selected)
